Specifications - Adjust-A-Wings | Leader of LED Grow Lights

HELLION VS3 LED

500W 6-Bar

700W 8-Bar

1000W 10-Bar

Model	HL500P	HL700P	HL1000P
3 x Variable Channels	Veg + Bloom + UV	Veg + Bloom + UV	Veg + Bloom + UV
Full Spectrum + Red + Far Red Ultraviolet – CRI	94.3	94.3	94.3
Diode Count	1596	2624	3280
Diode Type	Veg: 672pcs LM301H 5000K + 192pcs LM301H EVO 5000K Bloom: 528pcs LM301H 3000K + 96pcs 301H EVO 3000K + 72pcs Osram 660nm + 12pcs Osram 740nm UV: 24pcs Seoul 395nm	Veg: 1120pcs LM301H 5000K + 320pcs LM301H EVO 5000K Bloom: 880pcs LM301H 3000K + 160pcs 301H EVO 3000K + 96pcs Osram 660nm + 16pcs Osram 740nm UV: 32pcs Seoul 395nm	Veg: 1400pcs LM301H 5000K + 400pcs LM301H EVO 5000K Bloom: 1100pcs LM301H 3000K + 200pcs 301H EVO 3000K + 120pcs Osram 660nm + 20pcs Osram 740nm UV: 40pcs Seoul 395nm
Wet Rating	Drivers: IP67 ,LED Bars: IP65 ,Driver Housing: IP40
PPF	1475 µmol/s	2065 µmol/s	2950 µmol/s
PPE	2.95 µmol/j	2.95 µmol/j	2.95 µmol/j
BPF	1550 µmol/s	2170 µmol/s	3100 µmol/s
BPE	3.10 µmol/j	3.10 µmol/j	3.10 µmol/j
Input Voltage	100-265 VAC – 50/60Hz	100-265 VAC – 50/60Hz	100-265 VAC – 50/60Hz
Input Current	5 – 1.89 Amp	7 – 2.65 Amp	10 – 3.78 Amp
Power Input	500W	700W	1000W
Fixture Dimension	840mm x 840mm x 135mm	1120mm x 1120mm x 135mm	1120mm x 1120mm x 135mm
Net Weigh	11kg	17kg	21kg

Controllable with Hellion LED Master III controller or equivalent 3-channel controller – PWM/0-10V
(BPF/BPE = Bioactive Photon Flux/Efficacy)

Model	HL500S	HL700S	HL1000S
3 x Variable Channels	Veg + Bloom + UV	Veg + Bloom + UV	Veg + Bloom + UV
Full Spectrum + Red + Far Red Ultraviolet – CRI	93.1	93.1	93.1
Diode Count	1092	1456	2380
Diode Type	Veg: 432pcs LM301H 5000K + 144pcs LM301H EVO 5000K Bloom: 360pcs LM301H 3000K + 72pcs 301H EVO 3000K + 48pcs Osram 660nm + 12pcs Osram 740nm UV: 24pcs Seoul 395nm	Veg: 576pcs LM301H 5000K + 192pcs LM301H EVO 5000K Bloom: 480pcs LM301H 3000K + 96pcs 301H EVO 3000K + 64pcs Osram 660nm + 16pcs Osram 740nm UV: 32pcs Seoul 395nm	Veg: 960pcs LM301H 5000K + 320pcs LM301H EVO 5000K Bloom: 800pcs LM301H 3000K + 160pcs 301H EVO 3000K + 80pcs Osram 660nm + 20pcs Osram 740nm UV: 40pcs Seoul 395nm
Wet Rating	Drivers: IP67 ,LED Bars: IP65 ,Driver Housing: IP40
PPF	1435 µmol/s	2009 µmol/s	2870 µmol/s
PPE	2.87µmol/j	2.87 µmol/j	2.87 µmol/j
BPF	1500 µmol/s	2100 µmol/s	3000 µmol/s
BPE	3.00 µmol/j	3.00 µmol/j	3.00 µmol/j
Input Voltage	100-265 VAC – 50/60Hz	100-265 VAC – 50/60Hz	100-265 VAC – 50/60Hz
Input Current	5 – 1.89 Amp	7 – 2.65 Amp	10 – 3.78 Amp
Power Input	500W	700W	1000W
Fixture Dimension	840mm x 840mm x 135mm	1120mm x 1120mm x 135mm	1120mm x 1120mm x 135mm
Net Weigh	11kg	17kg	21kg

Controllable with Hellion LED Master III controller or equivalent 3-channel controller – PWM/0-10V
(BPF/BPE = Bioactive Photon Flux/Efficacy)

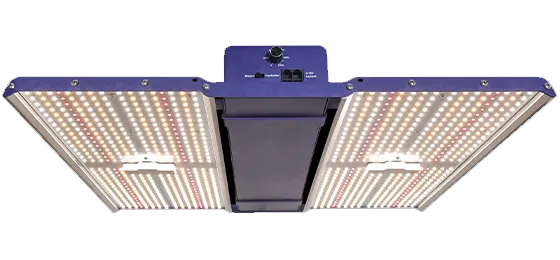

480W Genius

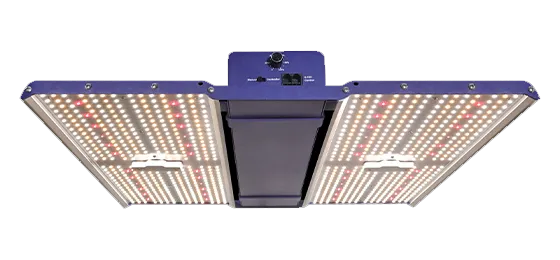

450W Performer

450W Starter

Model	HB480G	HB450P	HB450S
3 x Variable Channels	Veg + Bloom + UV	Single	Single
Full Spectrum + Red + Far Red Ultraviolet – CRI	94.3	93.1	93.1
Diode Count	1080	944	1024
Diode Type	Veg :448pcs 5000k 301H ,128pcs 5000k 301H EVO Bloom: 336pcs 3000K 301H ,96pcs 3000k 301H EVO ,48pcs osram 660nm,8pcs Osram 730nm UV: 16pcs Seoul 395nm	512pcs 5000K LM301H ,384pcs 3000K LM301H + 40pcs Osram 660nm+ 8pcs Osram 730nm	512pcs 5000K 281B Pro + ,384pcs 3000K 281B Pro + + 112pcs SMD2835 660nm + 16PCS SMD 3030 730nm
Wet Rating	Drivers: IP67 ,LED Bars: IP65 ,Driver Housing: IP20
PPF	1395 µmol/s	1330 µmol/s	1285 µmol/s
PPE	2.9 µmol/j	2.9 µmol/j	2.85 µmol/j
BPF	1465 µmol/s	1350 µmol/s	1305 µmol/s
BPE	3.05 µmol/j	3.05 µmol/j	2.9 µmol/j
Input Voltage	100-265 VAC – 50/60Hz	100-265 VAC – 50/60Hz	100-265 VAC – 50/60Hz
Input Current	4.8 – 1.81 Amp	4.5 – 1.70 Amp	10 – 3.78 Amp
Power Input	480W	450W	450W
Fixture Dimension	620mm x 620mm x 70mm	620mm x 620mm x 70mm	620mm x 620mm x 70mm
Net Weigh	13kg	12kg	12kg

Controllable with Hellion LED Master III controller or equivalent 3-channel controller – PWM/0-10V
(BPF/BPE = Bioactive Photon Flux/Efficacy)
